🎁What is TabNet?| 📈TabNet & ensemble EN
Original Notebook : https://www.kaggle.com/code/stechparme/what-is-tabnet-tabnet-ensemble-en/notebook#predict-with-TabNet+Catboost+LGBM
Introduction
This is the trail notebook of pytorch_tabnet.
In this notebook
1. try TabNet model prediction
2. ensemble TabNet and CatBoost and LGBM (skip this process)
About TabNet
- deep tabular data learning model
- this model can improve accuracy by unsupervised learning
- the performance of this model is equal to or greater than gbdt model
import and read data
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import train_test_split
from sklearn.metrics import confusion_matrix
from sklearn.metrics import ConfusionMatrixDisplay
from pytorch_tabnet.pretraining import TabNetPretrainer
from pytorch_tabnet.tab_model import TabNetClassifier
import torch
# from catboost import CatBoostClassifier
# from lightgbm import LGBMClassifier
train = pd.read_csv("./data/train.csv")
test = pd.read_csv("./data/test.csv")
sample = pd.read_csv("./data/sample_submission.csv")
df_all = pd.concat([train, test], sort = True) \
.reset_index(drop = True)
print(df_all.info())
#> <class 'pandas.core.frame.DataFrame'>
#> RangeIndex: 275057 entries, 0 to 275056
#> Data columns (total 14 columns):
#> # Column Non-Null Count Dtype
#> --- ------ -------------- -----
#> 0 Age 275057 non-null float64
#> 1 Balance 275057 non-null float64
#> 2 CreditScore 275057 non-null int64
#> 3 CustomerId 275057 non-null int64
#> 4 EstimatedSalary 275057 non-null float64
#> 5 Exited 165034 non-null float64
#> 6 Gender 275057 non-null object
#> 7 Geography 275057 non-null object
#> 8 HasCrCard 275057 non-null float64
#> 9 IsActiveMember 275057 non-null float64
#> 10 NumOfProducts 275057 non-null int64
#> 11 Surname 275057 non-null object
#> 12 Tenure 275057 non-null int64
#> 13 id 275057 non-null int64
#> dtypes: float64(6), int64(5), object(3)
#> memory usage: 29.4+ MB
#> None
df_all.head(2)
#> Age Balance CreditScore ... Surname Tenure id
#> 0 33.0 0.0 668 ... Okwudilichukwu 3 0
#> 1 33.0 0.0 627 ... Okwudiliolisa 1 1
#>
#> [2 rows x 14 columns]
df_all.describe()
#> Age Balance ... Tenure id
#> count 275057.000000 275057.000000 ... 275057.000000 275057.000000
#> mean 38.124415 55420.296450 ... 5.010867 137528.000000
#> std 8.864927 62805.933171 ... 2.806173 79402.260834
#> min 18.000000 0.000000 ... 0.000000 0.000000
#> 25% 32.000000 0.000000 ... 3.000000 68764.000000
#> 50% 37.000000 0.000000 ... 5.000000 137528.000000
#> 75% 42.000000 120037.960000 ... 7.000000 206292.000000
#> max 92.000000 250898.090000 ... 10.000000 275056.000000
#>
#> [8 rows x 11 columns]
create features
# Age group
df_all['Age_label'] = 0
df_all.loc[(df_all['Age'] < 20), 'Age_label'] = 1
df_all.loc[(df_all['Age'] >= 20) & (df_all['Age'] < 30), 'Age_label'] = 2
df_all.loc[(df_all['Age'] >= 30) & (df_all['Age'] < 40), 'Age_label'] = 3
df_all.loc[(df_all['Age'] >= 40), 'Age_label'] = 4
# Balance group
df_all['Balance_label'] = 0
df_all.loc[(df_all['Balance'] >= 50000) & (df_all['Balance'] < 100000), 'Balance_label'] = 1
df_all.loc[(df_all['Balance'] >= 100000) & (df_all['Balance'] < 150000), 'Balance_label'] = 2
df_all.loc[(df_all['Balance'] >= 150000) & (df_all['Balance'] < 200000), 'Balance_label'] = 3
df_all.loc[(df_all['Balance'] >= 200000), 'Balance_label'] = 4
# CreditScore group
df_all['CreditScore_label'] = 0
df_all.loc[(df_all['CreditScore'] >= 500) & (df_all['CreditScore'] < 600), 'CreditScore_label'] = 1
df_all.loc[(df_all['CreditScore'] >= 600) & (df_all['CreditScore'] < 700), 'CreditScore_label'] = 2
df_all.loc[(df_all['CreditScore'] >= 700), 'CreditScore_label'] = 3
# EstimatedSalary group
df_all['EstimatedSalary_label'] = 0
df_all.loc[(df_all['EstimatedSalary'] >= 50000) & (df_all['EstimatedSalary'] < 100000), 'EstimatedSalary_label'] = 1
df_all.loc[(df_all['EstimatedSalary'] >= 100000) & (df_all['EstimatedSalary'] < 150000), 'EstimatedSalary_label'] = 2
df_all.loc[(df_all['EstimatedSalary'] >= 150000), 'EstimatedSalary_label'] = 3
# feature convert
df_all['Surname'], uniques = pd.factorize(df_all['Surname'])
df_all = pd.get_dummies(df_all, columns = ['Gender', 'Geography', 'HasCrCard', 'IsActiveMember', 'NumOfProducts'])
print(df_all.shape)
#> (275057, 26)
print(df_all.info())
#> <class 'pandas.core.frame.DataFrame'>
#> RangeIndex: 275057 entries, 0 to 275056
#> Data columns (total 26 columns):
#> # Column Non-Null Count Dtype
#> --- ------ -------------- -----
#> 0 Age 275057 non-null float64
#> 1 Balance 275057 non-null float64
#> 2 CreditScore 275057 non-null int64
#> 3 CustomerId 275057 non-null int64
#> 4 EstimatedSalary 275057 non-null float64
#> 5 Exited 165034 non-null float64
#> 6 Surname 275057 non-null int64
#> 7 Tenure 275057 non-null int64
#> 8 id 275057 non-null int64
#> 9 Age_label 275057 non-null int64
#> 10 Balance_label 275057 non-null int64
#> 11 CreditScore_label 275057 non-null int64
#> 12 EstimatedSalary_label 275057 non-null int64
#> 13 Gender_Female 275057 non-null bool
#> 14 Gender_Male 275057 non-null bool
#> 15 Geography_France 275057 non-null bool
#> 16 Geography_Germany 275057 non-null bool
#> 17 Geography_Spain 275057 non-null bool
#> 18 HasCrCard_0.0 275057 non-null bool
#> 19 HasCrCard_1.0 275057 non-null bool
#> 20 IsActiveMember_0.0 275057 non-null bool
#> 21 IsActiveMember_1.0 275057 non-null bool
#> 22 NumOfProducts_1 275057 non-null bool
#> 23 NumOfProducts_2 275057 non-null bool
#> 24 NumOfProducts_3 275057 non-null bool
#> 25 NumOfProducts_4 275057 non-null bool
#> dtypes: bool(13), float64(4), int64(9)
#> memory usage: 30.7 MB
#> None
print(df_all.head())
#> Age Balance ... NumOfProducts_3 NumOfProducts_4
#> 0 33.0 0.00 ... False False
#> 1 33.0 0.00 ... False False
#> 2 40.0 0.00 ... False False
#> 3 34.0 148882.54 ... False False
#> 4 33.0 0.00 ... False False
#>
#> [5 rows x 26 columns]
split data for train and test
# split data into train and test
df_all.drop(['id'], inplace = True, axis = 1)
df_train = df_all.loc[df_all['Exited'].notnull()]
df_test = df_all.loc[df_all['Exited'].isnull()]
df_test.drop(['Exited'], inplace = True, axis = 1)
#> <string>:1: SettingWithCopyWarning:
#> A value is trying to be set on a copy of a slice from a DataFrame
#>
#> See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
# convert data for using TabNet
X = df_train.drop(['Exited'], axis = 1) \
.values \
.astype(float)
y = df_train['Exited'] \
.values \
.astype(int)
df_test = df_test \
.values \
.astype(int)
# split data
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size = 0.2, random_state = 1, stratify = y)
model train
# pretrain with unspervised model
unsupervised_model = TabNetPretrainer(optimizer_fn = torch.optim.Adam,
optimizer_params = dict(lr = 1e-3),
device_name = "cuda",
mask_type = "entmax")
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/abstract_model.py:82: UserWarning: Device used : cuda
#> warnings.warn(f"Device used : {self.device}")
unsupervised_model.fit(X_train = X_train,
eval_set = [X_test],
batch_size = 64,
max_epochs = 100,
patience = 10,
pretraining_ratio = 0.8)
#> epoch 0 | loss: 2050.35993| val_0_unsup_loss_numpy: 2011.8619384765625| 0:00:30s
#> epoch 1 | loss: 2042.20971| val_0_unsup_loss_numpy: 2010.4073486328125| 0:01:01s
#> epoch 2 | loss: 2044.25991| val_0_unsup_loss_numpy: 2010.07275390625| 0:01:31s
#> epoch 3 | loss: 2041.11629| val_0_unsup_loss_numpy: 2009.5718994140625| 0:02:01s
#> epoch 4 | loss: 2044.52132| val_0_unsup_loss_numpy: 2009.6256103515625| 0:02:31s
#> epoch 5 | loss: 2039.13427| val_0_unsup_loss_numpy: 2009.303955078125| 0:03:09s
#> epoch 6 | loss: 2046.92803| val_0_unsup_loss_numpy: 2009.201171875| 0:03:43s
#> epoch 7 | loss: 2039.25961| val_0_unsup_loss_numpy: 2008.898193359375| 0:04:14s
#> epoch 8 | loss: 2042.7654| val_0_unsup_loss_numpy: 2010.17333984375| 0:04:44s
#> epoch 9 | loss: 2042.94586| val_0_unsup_loss_numpy: 2009.300537109375| 0:05:15s
#> epoch 10 | loss: 2043.9666| val_0_unsup_loss_numpy: 2009.748046875| 0:05:44s
#> epoch 11 | loss: 2043.60059| val_0_unsup_loss_numpy: 2009.5777587890625| 0:06:14s
#> epoch 12 | loss: 2040.07033| val_0_unsup_loss_numpy: 2008.737548828125| 0:06:44s
#> epoch 13 | loss: 2044.81842| val_0_unsup_loss_numpy: 2008.8499755859375| 0:07:13s
#> epoch 14 | loss: 2040.84951| val_0_unsup_loss_numpy: 2008.99951171875| 0:07:43s
#> epoch 15 | loss: 2045.44028| val_0_unsup_loss_numpy: 2008.0086669921875| 0:08:16s
#> epoch 16 | loss: 2045.66059| val_0_unsup_loss_numpy: 2009.361572265625| 0:08:46s
#> epoch 17 | loss: 2041.97707| val_0_unsup_loss_numpy: 2008.5216064453125| 0:09:18s
#> epoch 18 | loss: 2035.32246| val_0_unsup_loss_numpy: 2009.1259765625| 0:09:51s
#> epoch 19 | loss: 2041.81241| val_0_unsup_loss_numpy: 2009.13525390625| 0:10:22s
#> epoch 20 | loss: 2033.32754| val_0_unsup_loss_numpy: 2008.73291015625| 0:10:53s
#> epoch 21 | loss: 2041.27862| val_0_unsup_loss_numpy: 2008.46484375| 0:11:21s
#> epoch 22 | loss: 2039.38183| val_0_unsup_loss_numpy: 2009.5911865234375| 0:11:51s
#> epoch 23 | loss: 2039.49226| val_0_unsup_loss_numpy: 2006.888427734375| 0:12:20s
#> epoch 24 | loss: 2044.64617| val_0_unsup_loss_numpy: 2008.709716796875| 0:12:51s
#> epoch 25 | loss: 2038.77137| val_0_unsup_loss_numpy: 2010.7569580078125| 0:13:23s
#> epoch 26 | loss: 2034.80459| val_0_unsup_loss_numpy: 2008.857421875| 0:13:53s
#> epoch 27 | loss: 2038.67015| val_0_unsup_loss_numpy: 2008.715576171875| 0:14:21s
#> epoch 28 | loss: 2034.56014| val_0_unsup_loss_numpy: 2007.0107421875| 0:14:50s
#> epoch 29 | loss: 2044.26342| val_0_unsup_loss_numpy: 2007.596435546875| 0:15:21s
#> epoch 30 | loss: 2036.45683| val_0_unsup_loss_numpy: 2007.323974609375| 0:15:52s
#> epoch 31 | loss: 2040.55116| val_0_unsup_loss_numpy: 2007.0291748046875| 0:16:22s
#> epoch 32 | loss: 2032.43736| val_0_unsup_loss_numpy: 2007.6968994140625| 0:16:53s
#> epoch 33 | loss: 2033.66415| val_0_unsup_loss_numpy: 2007.7215576171875| 0:17:21s
#>
#> Early stopping occurred at epoch 33 with best_epoch = 23 and best_val_0_unsup_loss_numpy = 2006.888427734375
#>
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/callbacks.py:172: UserWarning: Best weights from best epoch are automatically used!
#> warnings.warn(wrn_msg)
# train model
model = TabNetClassifier(optimizer_fn = torch.optim.Adam,
optimizer_params = dict(lr = 1e-3),
device_name = "cuda",
verbose = 1)
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/abstract_model.py:82: UserWarning: Device used : cuda
#> warnings.warn(f"Device used : {self.device}")
model.fit(X_train, y_train,
eval_set = [(X_train, y_train), (X_test, y_test)],
eval_metric = ['accuracy', 'accuracy'],
eval_name = ['train', 'valid'],
batch_size = 64,
max_epochs = 100,
patience = 10,
from_unsupervised = unsupervised_model)
#> epoch 0 | loss: 0.42906 | train_accuracy: 0.85574 | valid_accuracy: 0.85179 | 0:00:33s
#> epoch 1 | loss: 0.34494 | train_accuracy: 0.85845 | valid_accuracy: 0.85315 | 0:01:08s
#> epoch 2 | loss: 0.33713 | train_accuracy: 0.86165 | valid_accuracy: 0.85676 | 0:01:45s
#> epoch 3 | loss: 0.33414 | train_accuracy: 0.86343 | valid_accuracy: 0.85888 | 0:02:20s
#> epoch 4 | loss: 0.33183 | train_accuracy: 0.86333 | valid_accuracy: 0.85939 | 0:02:54s
#> epoch 5 | loss: 0.33078 | train_accuracy: 0.86269 | valid_accuracy: 0.85842 | 0:03:29s
#> epoch 6 | loss: 0.32883 | train_accuracy: 0.86407 | valid_accuracy: 0.8587 | 0:04:08s
#> epoch 7 | loss: 0.32811 | train_accuracy: 0.865 | valid_accuracy: 0.86012 | 0:04:45s
#> epoch 8 | loss: 0.32789 | train_accuracy: 0.86429 | valid_accuracy: 0.85964 | 0:05:21s
#> epoch 9 | loss: 0.32723 | train_accuracy: 0.865 | valid_accuracy: 0.86094 | 0:05:56s
#> epoch 10 | loss: 0.32707 | train_accuracy: 0.8652 | valid_accuracy: 0.86188 | 0:06:31s
#> epoch 11 | loss: 0.32597 | train_accuracy: 0.86601 | valid_accuracy: 0.86157 | 0:07:05s
#> epoch 12 | loss: 0.32566 | train_accuracy: 0.86537 | valid_accuracy: 0.86112 | 0:07:39s
#> epoch 13 | loss: 0.32567 | train_accuracy: 0.86355 | valid_accuracy: 0.85867 | 0:08:13s
#> epoch 14 | loss: 0.32541 | train_accuracy: 0.86487 | valid_accuracy: 0.86067 | 0:08:47s
#> epoch 15 | loss: 0.32441 | train_accuracy: 0.86504 | valid_accuracy: 0.86094 | 0:09:21s
#> epoch 16 | loss: 0.32435 | train_accuracy: 0.86509 | valid_accuracy: 0.86045 | 0:09:54s
#> epoch 17 | loss: 0.32388 | train_accuracy: 0.86396 | valid_accuracy: 0.85909 | 0:10:28s
#> epoch 18 | loss: 0.32387 | train_accuracy: 0.8656 | valid_accuracy: 0.86179 | 0:11:02s
#> epoch 19 | loss: 0.32399 | train_accuracy: 0.866 | valid_accuracy: 0.86064 | 0:11:39s
#> epoch 20 | loss: 0.32397 | train_accuracy: 0.86457 | valid_accuracy: 0.86064 | 0:12:14s
#>
#> Early stopping occurred at epoch 20 with best_epoch = 10 and best_valid_accuracy = 0.86188
#>
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/abstract_model.py:118: UserWarning: Pretraining: mask_type changed from sparsemax to entmax
#> warnings.warn(wrn_msg)
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/abstract_model.py:248: UserWarning: Loading weights from unsupervised pretraining
#> warnings.warn("Loading weights from unsupervised pretraining")
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/pytorch_tabnet/callbacks.py:172: UserWarning: Best weights from best epoch are automatically used!
#> warnings.warn(wrn_msg)
view feature interpretation and predict probability

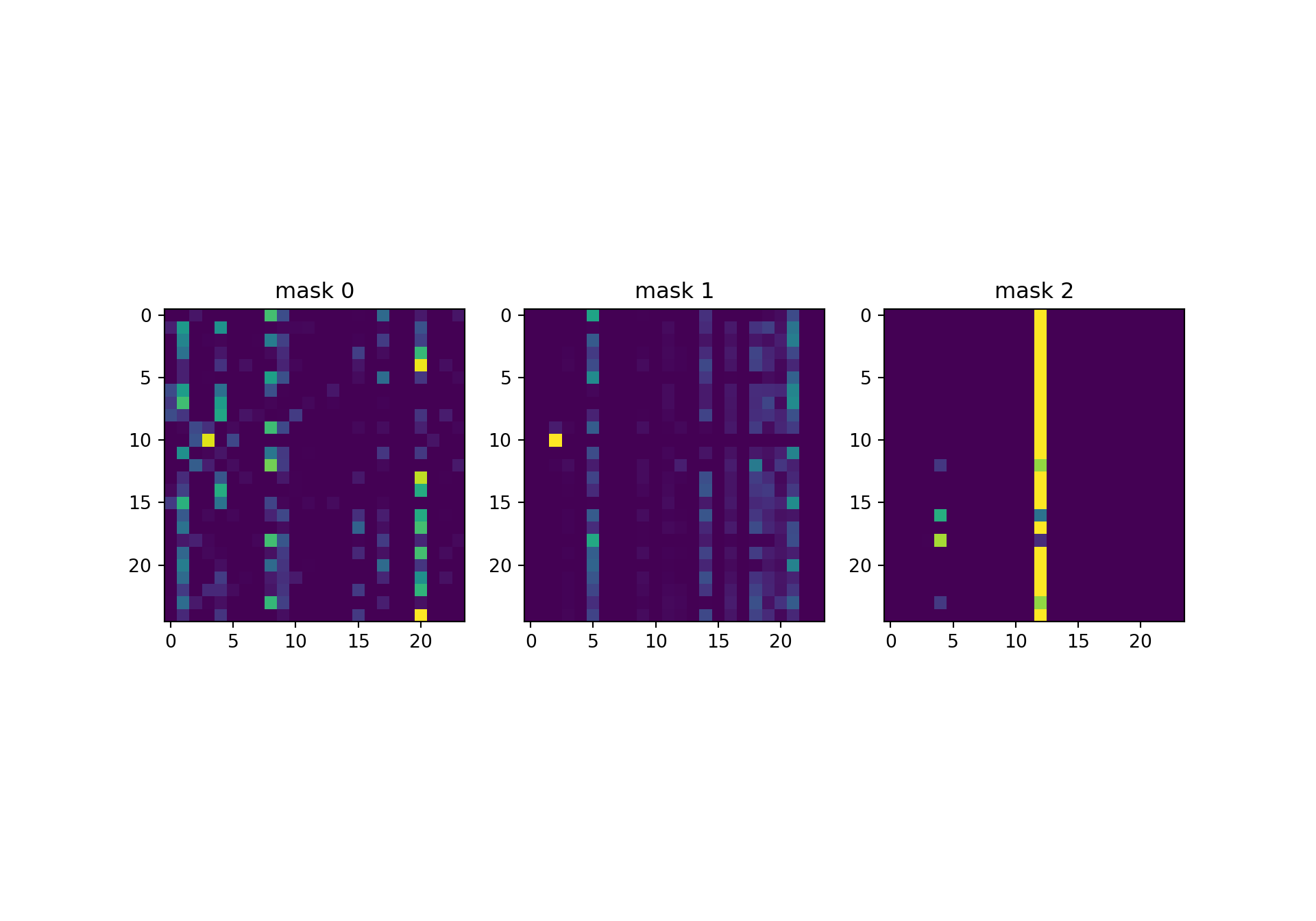

# mask(local interpretability)
explain_matrix, masks = model.explain(df_test)
fig, ax = plt.subplots(1, 3, figsize = (10, 7))
for i in range(3):
ax[i].imshow(masks[i][:25])
ax[i].set_title(f"mask {i}")
plt.show()
pred_tabnet = model.predict_proba(df_test)[:, 1]
output_tabnet = pd.DataFrame({'id': sample['id'], 'Exited' : pred_tabnet})
output_tabnet.to_csv('./data/submission_tabnet.csv', index = False)
output_tabnet.head()
#> id Exited
#> 0 165034 0.018964
#> 1 165035 0.793878
#> 2 165036 0.019698
#> 3 165037 0.218071
#> 4 165038 0.357962
predict with TabNet + Catboost + LGBM
skip
