Pytorch_Starter-FasterRCNN_Train
Original Notebook : https://www.kaggle.com/code/pestipeti/pytorch-starter-fasterrcnn-train
In this notebookm I enabled the GPU and the Internet access (needed for the pre-trained weights). We can not use Internet during inference, so I’ll create another notebook for commiting. Stay tuned!
You can find the inference notebook here
- FasterRCNN from torchvision
- Use Resnet50 backbone
- Albumentation enabled (simple filp for now)
import pandas as pd
import numpy as np
import cv2
import os
import re
from PIL import Image
import albumentations as A
from albumentations.pytorch.transforms import ToTensorV2
import torch
import torchvision
from torchvision.models.detection.faster_rcnn import FastRCNNPredictor
from torchvision.models.detection import FasterRCNN
from torchvision.models.detection.rpn import AnchorGenerator
from torch.utils.data import DataLoader, Dataset
from torch.utils.data.sampler import SequentialSampler
from matplotlib import pyplot as plt
DIR_INPUT = os.path.join(os.getcwd(), "data")
DIR_TRAIN = f'{DIR_INPUT}/train'
DIR_TEST = f'{DIR_INPUT}/test'
train_df = pd.read_csv(f"{DIR_INPUT}/train.csv")
train_df.shape
#> (147793, 5)
train_df.info
#> <bound method DataFrame.info of image_id width height bbox source
#> 0 b6ab77fd7 1024 1024 [834.0, 222.0, 56.0, 36.0] usask_1
#> 1 b6ab77fd7 1024 1024 [226.0, 548.0, 130.0, 58.0] usask_1
#> 2 b6ab77fd7 1024 1024 [377.0, 504.0, 74.0, 160.0] usask_1
#> 3 b6ab77fd7 1024 1024 [834.0, 95.0, 109.0, 107.0] usask_1
#> 4 b6ab77fd7 1024 1024 [26.0, 144.0, 124.0, 117.0] usask_1
#> ... ... ... ... ... ...
#> 147788 5e0747034 1024 1024 [64.0, 619.0, 84.0, 95.0] arvalis_2
#> 147789 5e0747034 1024 1024 [292.0, 549.0, 107.0, 82.0] arvalis_2
#> 147790 5e0747034 1024 1024 [134.0, 228.0, 141.0, 71.0] arvalis_2
#> 147791 5e0747034 1024 1024 [430.0, 13.0, 184.0, 79.0] arvalis_2
#> 147792 5e0747034 1024 1024 [875.0, 740.0, 94.0, 61.0] arvalis_2
#>
#> [147793 rows x 5 columns]>
train_df['x'] = -1
train_df['y'] = -1
train_df['w'] = -1
train_df['h'] = -1
def expand_bbox(x):
r = np.array(re.findall("([0-9]+[.]?[0-9]*)", x))
if len(r) == 0:
r = [-1, -1, -1, -1]
return r
train_df[['x', 'y', 'w', 'h']] = np.stack(train_df['bbox'].apply(lambda x: expand_bbox(x)))
train_df.drop(columns=['bbox'], inplace=True)
train_df['x'] = train_df['x'].astype(np.float64)
train_df['y'] = train_df['y'].astype(np.float64)
train_df['w'] = train_df['w'].astype(np.float64)
train_df['h'] = train_df['h'].astype(np.float64)
image_ids = train_df['image_id'].unique()
valid_ids = image_ids[-665:]
train_ids = image_ids[:-665]
valid_df = train_df[train_df['image_id'].isin(valid_ids)]
train_df = train_df[train_df['image_id'].isin(train_ids)]
valid_df.shape, train_df.shape
#> ((25006, 8), (122787, 8))
class WheatDataset(Dataset):
def __init__(self, dataframe, image_dir, transforms = None):
super().__init__()
self.image_ids = dataframe['image_id'].unique()
self.df = dataframe
self.image_dir = image_dir
self.transforms = transforms
def __getitem__(self, index: int):
image_id = self.image_ids[index]
records = self.df[self.df['image_id'] == image_id]
image = cv2.imread(f"{self.image_dir}/{image_id}.jpg")
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB).astype(np.float32)
image /= 255.0
boxes = records[['x', 'y', 'w', 'h']].values
boxes[:, 2] = boxes[:, 0] + boxes[:, 2]
boxes[:, 3] = boxes[:, 1] + boxes[:, 3]
area = (boxes[:, 3] - boxes[:, 1]) * (boxes[:, 2] - boxes[:, 0])
area = torch.as_tensor(area, dtype = torch.float32)
# there is only one class
labels = torch.ones((records.shape[0], ), dtype = torch.int64)
# suppose all instances are not crowd
iscrowd = torch.zeros((records.shape[0], ), dtype = torch.int64)
target = {}
target['boxes'] = boxes
target['labels'] = labels
# target['masks'] = None
target['image_id'] = torch.tensor([index])
target['area'] = area
target['iscrowd'] = iscrowd
if self.transforms:
sample = {
'image' : image,
'bboxes' : target['boxes'],
'labels' : labels
}
sample = self.transforms(**sample)
image = sample['image']
target['boxes'] = torch.stack(tuple(map(torch.tensor, zip(*sample['bboxes'])))).permute(1, 0)
return image, target, image_id
def __len__(self) -> int:
return self.image_ids.shape[0]
# Albumentations
def get_train_transform():
return A.Compose([
A.Flip(0.5),
ToTensorV2(p = 1.0)
], bbox_params = {'format' : 'pascal_voc', 'label_fields' : ['labels']})
def get_valid_transform():
return A.Compose([
ToTensorV2(p = 1.0)
], bbox_params = {'format' : 'pascal_voc', 'label_fields' : ['labels']})
Create the model
# load a model; pre-trained on COCO
model = torchvision.models.detection.fasterrcnn_resnet50_fpn(pretrained = True)
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/torchvision/models/_utils.py:208: UserWarning: The parameter 'pretrained' is deprecated since 0.13 and may be removed in the future, please use 'weights' instead.
#> warnings.warn(
#> /home/rstudio/.local/share/r-miniconda/envs/r-reticulate/lib/python3.10/site-packages/torchvision/models/_utils.py:223: UserWarning: Arguments other than a weight enum or `None` for 'weights' are deprecated since 0.13 and may be removed in the future. The current behavior is equivalent to passing `weights=FasterRCNN_ResNet50_FPN_Weights.COCO_V1`. You can also use `weights=FasterRCNN_ResNet50_FPN_Weights.DEFAULT` to get the most up-to-date weights.
#> warnings.warn(msg)
num_classes = 2 # 1 class(wheat) + background
# get number of input features for the classifier
in_features = model.roi_heads.box_predictor.cls_score.in_features
# replace the pre-trained head with a new one
model.roi_heads.box_predictor = FastRCNNPredictor(in_features, num_classes)
class Averager:
def __init__(self):
self.current_total = 0.0
self.iterations = 0.0
def send(self, value):
self.current_total += value
self.iterations += 1
@property
def value(self):
if self.iterations == 0:
return 0
else:
return 1.0 * self.current_total / self.iterations
def reset(self):
self.current_total = 0.0
self.iterations = 0.0
def collate_fn(batch):
return tuple(zip(*batch))
train_dataset = WheatDataset(train_df, DIR_TRAIN, get_train_transform())
valid_dataset = WheatDataset(valid_df, DIR_TRAIN, get_valid_transform())
# split the dataset in train and test set
indices = torch.randperm(len(train_dataset)).tolist()
train_data_loader = DataLoader(
train_dataset,
batch_size = 16,
shuffle = False,
num_workers = 4,
collate_fn = collate_fn
)
valid_data_loader = DataLoader(
valid_dataset,
batch_size = 8,
shuffle = False,
num_workers = 4,
collate_fn = collate_fn
)
device = torch.device('cuda')

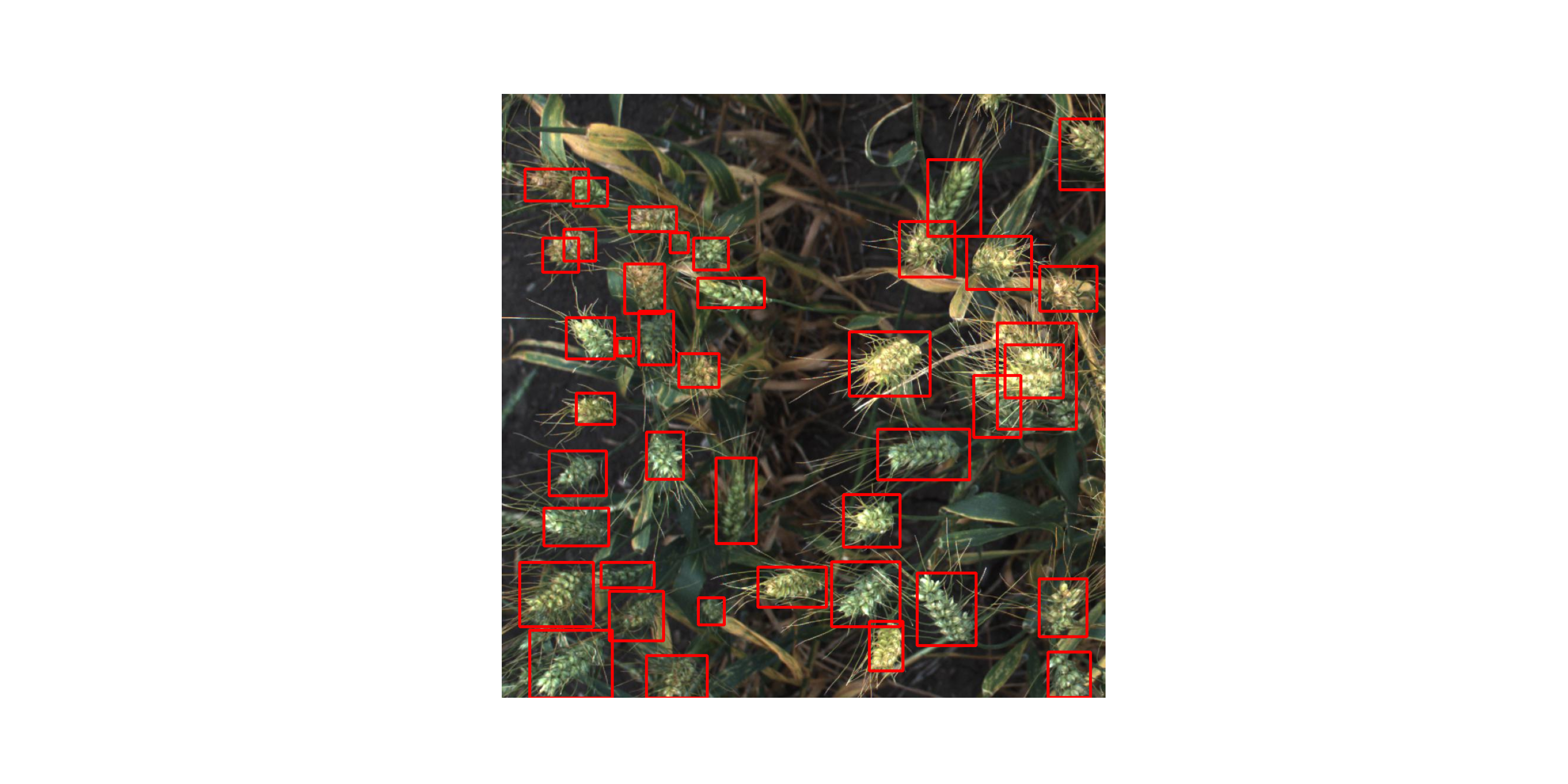

Sample
images, targets, image_ids = next(iter(train_data_loader))
images = list(image.to(device) for image in images)
targets = [{k: v.to(device) for k, v in t.items()} for t in targets]
boxes = targets[2]['boxes'].cpu().numpy().astype(np.int32)
sample = images[2].permute(1, 2, 0).cpu().numpy()
fig, ax = plt.subplots(1, 1, figsize = (16, 8))
for box in boxes:
cv2.rectangle(sample,
(box[0], box[1]),
(box[2], box[3]),
(220, 0, 0),
3)
ax.set_axis_off()
ax.imshow(sample)
plt.show()
Train
model.to(device)
#> FasterRCNN(
#> (transform): GeneralizedRCNNTransform(
#> Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
#> Resize(min_size=(800,), max_size=1333, mode='bilinear')
#> )
#> (backbone): BackboneWithFPN(
#> (body): IntermediateLayerGetter(
#> (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
#> (layer1): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (1): FrozenBatchNorm2d(256, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer2): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(512, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (3): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer3): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(512, 1024, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(1024, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (3): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (4): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (5): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer4): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(1024, 2048, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(2048, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> )
#> (fpn): FeaturePyramidNetwork(
#> (inner_blocks): ModuleList(
#> (0): Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (1): Conv2dNormActivation(
#> (0): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (2): Conv2dNormActivation(
#> (0): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (3): Conv2dNormActivation(
#> (0): Conv2d(2048, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> )
#> (layer_blocks): ModuleList(
#> (0-3): 4 x Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
#> )
#> )
#> (extra_blocks): LastLevelMaxPool()
#> )
#> )
#> (rpn): RegionProposalNetwork(
#> (anchor_generator): AnchorGenerator()
#> (head): RPNHead(
#> (conv): Sequential(
#> (0): Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
#> (1): ReLU(inplace=True)
#> )
#> )
#> (cls_logits): Conv2d(256, 3, kernel_size=(1, 1), stride=(1, 1))
#> (bbox_pred): Conv2d(256, 12, kernel_size=(1, 1), stride=(1, 1))
#> )
#> )
#> (roi_heads): RoIHeads(
#> (box_roi_pool): MultiScaleRoIAlign(featmap_names=['0', '1', '2', '3'], output_size=(7, 7), sampling_ratio=2)
#> (box_head): TwoMLPHead(
#> (fc6): Linear(in_features=12544, out_features=1024, bias=True)
#> (fc7): Linear(in_features=1024, out_features=1024, bias=True)
#> )
#> (box_predictor): FastRCNNPredictor(
#> (cls_score): Linear(in_features=1024, out_features=2, bias=True)
#> (bbox_pred): Linear(in_features=1024, out_features=8, bias=True)
#> )
#> )
#> )
params = [p for p in model.parameters() if p.requires_grad]
optimizer = torch.optim.SGD(params, lr = 0.005, momentum = 0.9, weight_decay = 0.0005)
lr_scheduler = torch.optim.lr_scheduler.StepLR(optimizer, step_size = 3, gamma = 0.1)
# lr_scheduler = None
num_epochs = 2
loss_hist = Averager()
itr = 1
for epoch in range(num_epochs):
loss_hist.reset()
for images, targets, image_ids in train_data_loader:
images = list(image.to(device) for image in images)
targets = [{k: v.to(device) for k, v in t.items()} for t in targets]
loss_dict = model(images, targets)
losses = sum(loss for loss in loss_dict.values())
loss_value = losses.item()
loss_hist.send(loss_value)
optimizer.zero_grad()
losses.backward()
optimizer.step()
if itr % 50 == 0:
print(f"Iteration #{itr} loss: {loss_value:.4f}")
itr += 1
# update the learning rate
if lr_scheduler is not None:
lr_scheduler.step()
print(f"Epoch #{epoch} loss: {loss_hist.value:.4f}")
#> Iteration #50 loss: 1.0978
#> Iteration #100 loss: 0.8494
#> Iteration #150 loss: 0.8136
#> Epoch #0 loss: 1.0524
#> Iteration #200 loss: 0.9033
#> Iteration #250 loss: 0.8955
#> Iteration #300 loss: 0.7119
#> Epoch #1 loss: 0.8972
images, targets, image_ids = next(iter(valid_data_loader))
images = list(img.to(device) for img in images)
targets = [{k: v.to(device) for k, v in t.items()} for t in targets]
boxes = targets[1]['boxes'].cpu().numpy().astype(np.int32)
sample = images[1].permute(1,2,0).cpu().numpy()
model.eval()
#> FasterRCNN(
#> (transform): GeneralizedRCNNTransform(
#> Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
#> Resize(min_size=(800,), max_size=1333, mode='bilinear')
#> )
#> (backbone): BackboneWithFPN(
#> (body): IntermediateLayerGetter(
#> (conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
#> (layer1): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (1): FrozenBatchNorm2d(256, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(64, eps=0.0)
#> (conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(64, eps=0.0)
#> (conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(256, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer2): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(512, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (3): Bottleneck(
#> (conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(128, eps=0.0)
#> (conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(128, eps=0.0)
#> (conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(512, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer3): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(512, 1024, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(1024, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (3): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (4): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (5): Bottleneck(
#> (conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(256, eps=0.0)
#> (conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(256, eps=0.0)
#> (conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(1024, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> (layer4): Sequential(
#> (0): Bottleneck(
#> (conv1): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> (downsample): Sequential(
#> (0): Conv2d(1024, 2048, kernel_size=(1, 1), stride=(2, 2), bias=False)
#> (1): FrozenBatchNorm2d(2048, eps=0.0)
#> )
#> )
#> (1): Bottleneck(
#> (conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> (2): Bottleneck(
#> (conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn1): FrozenBatchNorm2d(512, eps=0.0)
#> (conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
#> (bn2): FrozenBatchNorm2d(512, eps=0.0)
#> (conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
#> (bn3): FrozenBatchNorm2d(2048, eps=0.0)
#> (relu): ReLU(inplace=True)
#> )
#> )
#> )
#> (fpn): FeaturePyramidNetwork(
#> (inner_blocks): ModuleList(
#> (0): Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (1): Conv2dNormActivation(
#> (0): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (2): Conv2dNormActivation(
#> (0): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> (3): Conv2dNormActivation(
#> (0): Conv2d(2048, 256, kernel_size=(1, 1), stride=(1, 1))
#> )
#> )
#> (layer_blocks): ModuleList(
#> (0-3): 4 x Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
#> )
#> )
#> (extra_blocks): LastLevelMaxPool()
#> )
#> )
#> (rpn): RegionProposalNetwork(
#> (anchor_generator): AnchorGenerator()
#> (head): RPNHead(
#> (conv): Sequential(
#> (0): Conv2dNormActivation(
#> (0): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
#> (1): ReLU(inplace=True)
#> )
#> )
#> (cls_logits): Conv2d(256, 3, kernel_size=(1, 1), stride=(1, 1))
#> (bbox_pred): Conv2d(256, 12, kernel_size=(1, 1), stride=(1, 1))
#> )
#> )
#> (roi_heads): RoIHeads(
#> (box_roi_pool): MultiScaleRoIAlign(featmap_names=['0', '1', '2', '3'], output_size=(7, 7), sampling_ratio=2)
#> (box_head): TwoMLPHead(
#> (fc6): Linear(in_features=12544, out_features=1024, bias=True)
#> (fc7): Linear(in_features=1024, out_features=1024, bias=True)
#> )
#> (box_predictor): FastRCNNPredictor(
#> (cls_score): Linear(in_features=1024, out_features=2, bias=True)
#> (bbox_pred): Linear(in_features=1024, out_features=8, bias=True)
#> )
#> )
#> )
cpu_device = torch.device("cpu")
outputs = model(images)
outputs = [{k: v.to(cpu_device) for k, v in t.items()} for t in outputs]

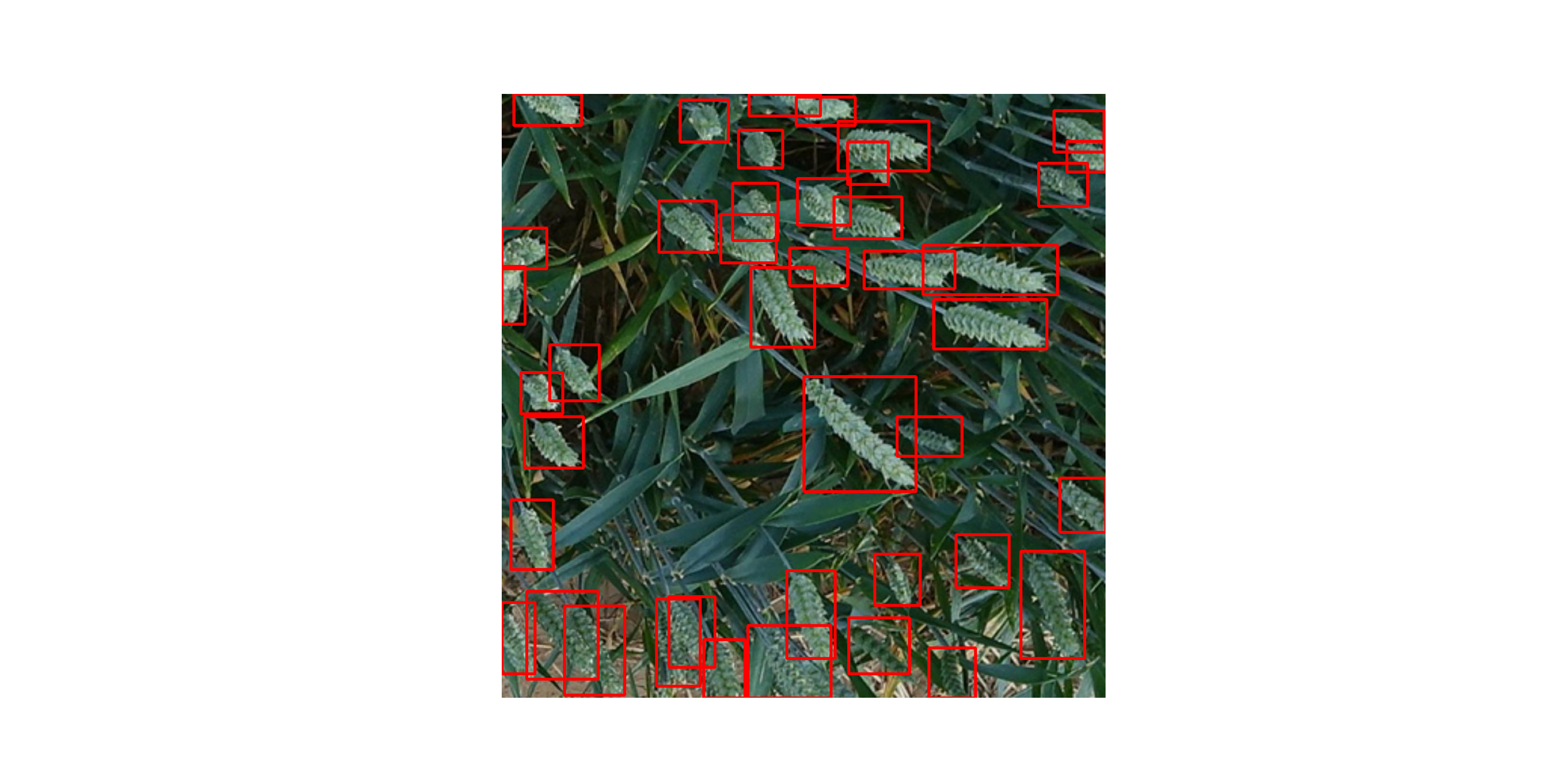

fig, ax = plt.subplots(1, 1, figsize = (16, 8))
for box in boxes:
cv2.rectangle(sample,
(box[0], box[1]),
(box[2], box[3]),
(220, 0, 0),
3)
ax.set_axis_off()
ax.imshow(sample)
plt.show()
# torch.save(model.state_dict(), "./models/fasterrcnn_resnet50_fpn.pth")
